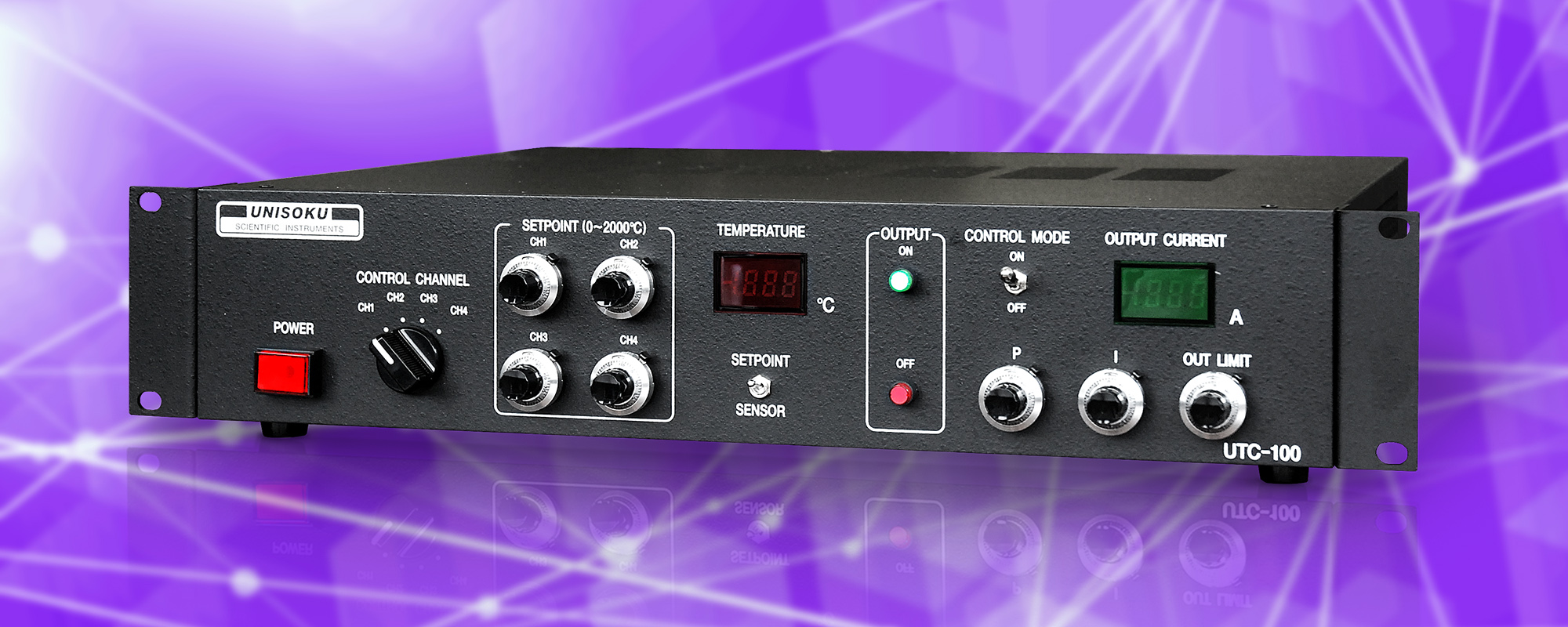

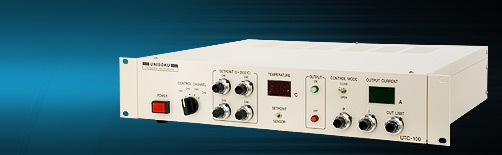

NEWUHV Multi-element Evaporators Temperature controller
Ultra High Vacuum Multi-element Miniature Evaporators
Main unit of high-temperature metal evaporator (ME-103C/104C series)
Main unit of organic molecular evaporator (ME-203C/204C series)
Main unit of high-temperature metal evaporator (ME-103C/104C series)
Main unit of organic molecular evaporator (ME-203C/204C series)
Specification of Main unit of organic molecular evaporator
| Input | |
|---|---|
| Input voltage | 100–240V |
| 15V | |
| Maximum output voltage | 100–240 V |
| Maximum output current | 7A (digital meter indication) |
| Number of outputs | 4-channel switching system |
| Output current adjustment | Manual adjustment of current output |
| Temperature monitor | |
| Temperature sensor | W-Re thermocouple (for high-temperature evaporation models ME-104CT, 103CST, and 103CSFT) K-type thermocouple (for organic molecular evaporation models ME-204CT, 203CST, and 203CSFT) |
| Number of channels displayed | 1 channel (interlocking with the control channel) |
| Thermal control | |
| Control circuit | Current output PI control based on the temperature sensor input |
| Number of channels controlled | 1 channel (4-channel switching system) |
| Set temperature input | Input to the 10-turn potentiometer and indicated on the digital meter |
| Size of steel case | Approx. 430 mm (width) × 350 mm (depth) × 100 mm (height) |
