Surface Analysis Accessories, Consumables

SPM Consumables

* Prices w/o tax

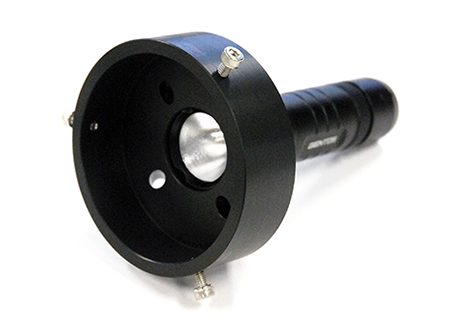

LED Light for ICF70 Port

LED Light for ICF70 Port
Type, Model Number A001604
Code Number A001604
Principal system Attached to ICF70 view port on vacuum chamber such as UHV SPM

Probe for STM (Pt;Ir)

Probe for STM (Pt;Ir)
Type, Model Number P-50 Pt;Ir
Code Number -
Sales Unit 1 set for 10 probes
Principal system UNISOKU STM System
Note The length is about 11 mm

* Please ask us for other STM Metal Probe, AFM cantilever, Probe holder, Sample holder.

Tungsten Probe for STM

Tungsten Probe for STM P-100WS
Type, Model Number P-100WS
Code Number -
Sales Unit 1 set for 10 probes
Note for STM
Tip Shape: cone
Curvature of Tip: less than 35 nm
Total length: about 10 mm
Material: 0.25 mm diameter poly crystal Tungsten
Length of tapered portion: 2–2.5 mm

* Sampling inspections are implemented to avoid Carbon contamination during SEM observation of STM probes.

Tungsten Probe (for Contact Nanoprobe)

Tungsten Probe (for Contact Nanoprobe) P-100WP
Type, Model Number P-100WP
Code Number -
Sales Unit 1 set for 10 probes
Note for Contact Nanoprobe
Tip Shape: cone
Curvature of Tip: less than 35 nm
Material: 0.25 mm diameter poly crystal Tungsten
Length of tapered portion: 3 mm
Taper Angle: 10–15 degree

* for the measurement with little contact resistance effect

PtIr coated Tungsten Probe

PtIr coated Tungsten Probe P-100W/PtIr
Type, Model Number P-100W/PtIr
Code Number -
Sales Unit 1 set for 10 probes
Note for Contact Nanoprobe
Tip Shape: cone
Curvature of Tip: less than 35 nm
Total length: about 10 mm
Material: 0.25 mm diameter poly crystal Tungsten
PtIr (80:20) Coating thickness: 3 mm
Length of tapered portion: 2–3 mm
Taper Angle: 10–15 degree

* for the measurement with little contact resistance effect

Ni Probe (for STM, Contact Nanoprobe)

Ni Probe (for STM, Contact Nanoprobe) P-100Ni(S)
Type, Model Number P-100Ni(S)
Code Number -
Sales Unit 1 set for 10 probes
Note for STM
Tip Shape: cone
Curvature of Tip: less than 25 nm
Total length: 10 mm
Material: 0.25mm diameter poly crystal Tungsten
Length of tapered portion: 1–1.5 mm

* Sampling inspections are implemented to avoid Carbon contamination during SEM observation of STM probes.

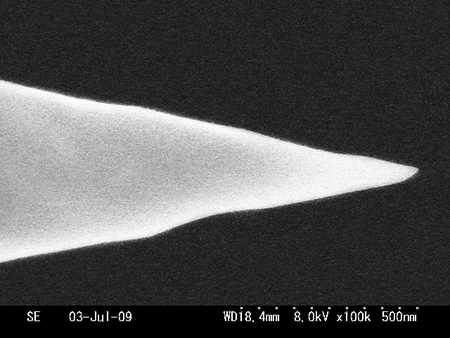

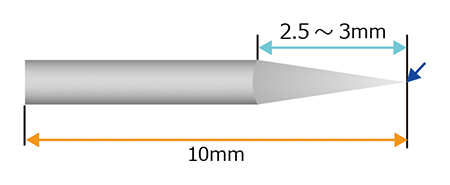

PtIr Probe (Electrochemically-Polished for STM)

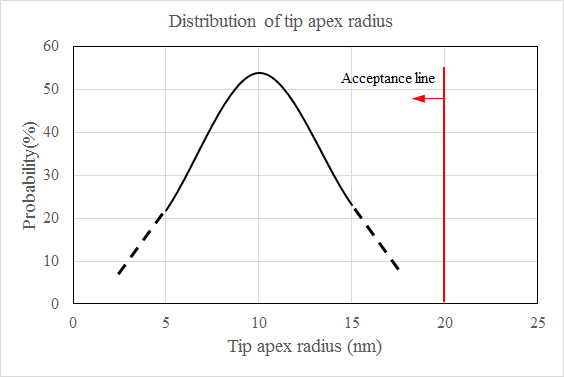

PtIr Probe (Electrochemically-Polished for STM) P-100PtIr(S) Distribution of tip apex radius
Type, Model Number P-100PtIr(S)
Code Number -
Sales Unit 1 set for 10 probes
Note for STM, Contact Nanoprobe
Tip Shape: cone
Curvature of Tip: less than 20 nm
Total length: about 10 mm
Material: 0.5mm diameter poly crystal PtIr(80:20)
Length of tapered portion: 2.5–3 mm

* Sampling inspections are implemented to avoid Carbon contamination during SEM observation of STM probes.

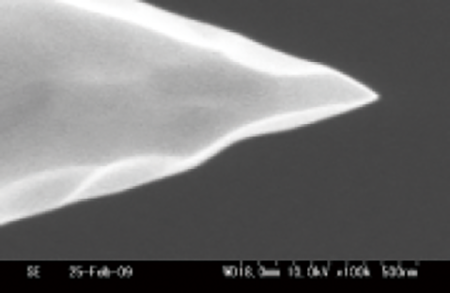

PtIr Probe (Electrochemically-Polished for Contact Nanoprobe)

PtIr Probe (Electrochemically-Polished for Contact Nanoprobe)
Type, Model Number P-100PtIr(P)
Code Number -
Sales Unit 1 set for 10 probes
Note for STM, Contact Nanoprobe
Tip Shape: cone
Curvature of Tip: less than 20 nm
Total length: about 10mm
Material: 0.5mm diameter poly crystal PtIr(80:20)
Length of tapered portion: 2.5–3 mm

* for the measurement with little contact resistance or wide contact

Au Evaporated Film on Mica (15 × 15 mm)

Au Evaporated Film on Mica (15 × 15 mm)
Type, Model Number AU15M
Code Number -
Principal system SPM Sample Holder etc. (Suitable as base measurement plate for single molecule film)
Note Thickness of Mica: 60–120 µm, Thickness of Gold: 100–150 nm
Crystallize Au (111) before use (Heat up by hydrogen or butane flame at 700°C in the air)
Size is optional (Maximum 20 × 30 mm). Please ask for the quotation

Sample for STM measurement (HOPG)

Sample for STM measurement (HOPG)
Type Thickness (t): about 0.5 mm
Code Number A00010
Note Attached on the sample holder plate. The plate shape is either diamond shape or small size depending on the SPM system.

Mini cylinder with valve (Ar enclosed)

Mini cylinder with valve (Ar enclosed)
Type, Model Number U100-1101
Code Number A001700
Principal system Ion Sputter Gun IB-102, 103
Note 1.5 atom Ar gas is enclosed
Flange: ICF34 cylinder
Content: about 50 cc

Mini cylinder with valve (Vacant)

Mini cylinder with valve (Vacant)
Type, Model Number U100-1100
Code Number 423056
Principal system Ion Sputter Gun IB-102, 103
Note 1 atom Air in the cylinder at the shipment
Flange: ICF34
Cylinder capacity: about 50 cc

Insulator: Convex type

Insulator: Convex type scale of Insulator: Convex type
Type, Model Number No. 1
Code Number No. 1
Principal system SPM Sample Holder
Note Sale by 10 pcs of Aluminum Oxide

Insulator: Convex type

Insulator: Convex type scale of Insulator: Convex type
Type, Model Number No. A
Code Number No. A
Principal system SPM Sample Holder
Note Sale by 10pcs of Aluminum Oxide

Insulator: Bead type

Insulator: Bead type scale of Insulator: Bead type
Type, Model Number No. A-2
Code Number No. A-2
Principal system for wiring under vacuum
Note Sale by 10pcs of Aluminum Oxide

Insulator: Tube type

Insulator: Tube type scale of Insulator: Tube type
Type, Model Number No. AL-1
Code Number No. AL-1
Principal system Inside Ion Sputter Gun
Note Sale by 10pcs of Aluminum Oxide

Spare Filament

Spare Filament
Type, Model Number U200-1030
Code Number -
Principal system Tip heater for STM EB-101
Note Tip cut (worked)

Filament Cover (Tantalum)

Filament Cover (Tantalum)
Type, Model Number U200-1031
Code Number 902020
Principal system Tip heater for STM EB-101

Pt Wire Ring (for exchange)

Pt Wire Ring (for exchange)
Type, Model Number U200-1040
Code Number USM0101
Principal system Electrochemical polishing for STM Tip UTE-1001

Cell (Cubic type)

Cell (Cubic type)
Type, Model Number 206023
Code Number 206023
Principal system Electrochemical polishing for STM Tip UTE-1001

Mini MAG-LITE (1 pair)

Mini MAG-LITE (1 pair)
Type, Model Number LM2A001
Code Number -
Principal system Electrochemical polishing for STM Tip UTE-1001
Note Not applicable for nipple bulb

K cell evaporation crucible

K cell evaporation crucible
Type, Model Number U200-1050
Code Number -
Principal system K cell evaporator source U100-1000

Sample Holder for STM (for Direct Current Heating)

Sample Holder for STM (for Direct Current Heating)
Type, Model Number USM-0029
Code Number USM-0029
Principal system USM1100S, USM1200S, other STM

* Different holder may be used, please ask us for further details.

Sample Holder for Ultra low temperature STM (for Direct Current Heating)

Sample Holder for Ultra low temperature STM (for Direct Current Heating)
Type, Model Number USM-0027
Code Number USM-0027
Principal system USM1200S, other STM
Note the shape of the holder is the same as USM-0029
Cu is used for upper plate parts for quick cool down of samples

* Different holder may be used, please ask us for further details.

STM Tip Holder (for Diameter 0.5 mm)

STM Tip Holder (for Diameter 0.5 mm)
Type, Model Number 902004
Code Number 902004
Principal system USM1100S, USM1200S, other STM
Note for the probe with 0.5 mm diameter, applicable to 0.3 mm diameter

* Different holder may be used, please ask us for further details.
