Power Supply for EB Evaporators EBM-100
PDF
Remote controller

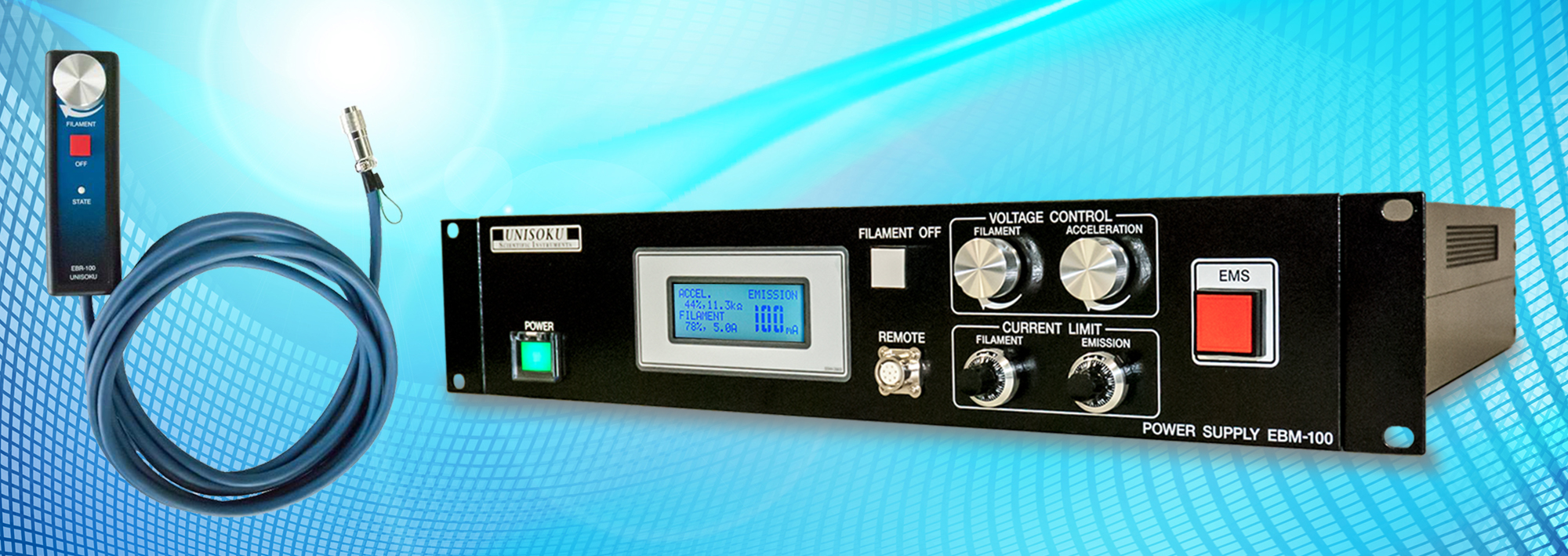

EBM-100 Body
PDF
Remote controller
EBM-100 Body
EBM-100 is suitable for sample heating and EB Evaporators by electron bombardment
Features
- High power (Emission voltage :3kV,Filament voltage :7V)
- Emission voltage/current and filament voltage/current are variable respectively
- High stability
- It's possible to control with a remote controller
- Light-weight and compact
Applications
- EB evaporation in UHV
- Sample heating by electron bombardment in UHV
Component
| Power supply body | 1 |
|---|---|
| Remote controller（EBR-100） | 1 |
| AC cable for power supply | 1 |
| Instruction manual | 1 |
Specifications
| Accelerating voltage terminal |
BNC connector for high voltage, voltage max. 3kV/ current max. 100mA |
|---|---|
| Filament output terminal | PRC03 connector Tajimi, Voltage max. 8V/ current max. 5A (Negative sides of accelerating and filament are connected inside) |
| External control input terminal |
BNC connector Filament voltage control signal : 0-10V Accelerating voltage control signal : 0-10V |
| Monitor output terminal | BNC connector Filament electricity terminal : -0.3～0V (-0.1mV/A) Emission electricity terminal : -1～0V (-10mV/mA) |
| Dimensions・Weight | W430 x H99 x D450 mm Weight ＜ 8Kg |
| Voltage | AC230V (+-10%) 50/60Hz Single phase (AC100V (+-10%), AC115V (+-10%), AC200V (+-10%) are available as option) |
