UMP-1000

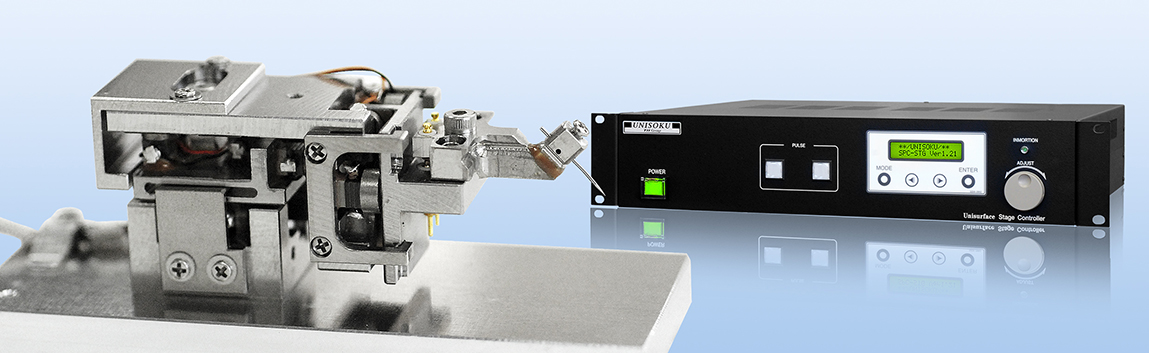

UMP-1000 is a manipulator that travels in X, Y and Z axis at nanometer level. It can be used in a variety of ways such as manipulating/probing on a micrometer/nanometer scale, by combining with SEM/FIB/optical microscopes that are on the market.
Features
Accurate and Easy Operation
Compatible with Windows PC. You can position samples quickly and accurately by switching between the coarse (pulse mode) and fine (DC mode) travel settings.
Works in a Wide Range of Operating Environments
This device can be used in a wide range of environments: from atmospheric pressure to ultrahigh vacuum, and from room temperature to very low temperature.
Good Deal
High performance, yet low cost.
Many Uses
This device can be used for various applications, such as nano-manipulation with a single unit and/or probing with multiple units.
- Nano-manipulation
- Probing (IV measurement of semi-conductor nano-devices, resistance measurement, EBIC measurement)
- Wide range of applications on a micro/nanometer scale
Basic Components
| Main Unit | 1 unit |
|---|---|
| Controller | 1 unit |
| Accessories | 1 set |
| Windows Laptop | 1 (Optional) |
Specifications
| 1. Main Unit | ||
|---|---|---|
| Maximum Travel Distance | - | |
| Pulse (Coarse) Mode | X and Y axes | 5 mm |
| Z axis | 3 mm | |
| DC (Fine) Mode | X and Y axes | 1 μm |
| Z axis | 1 μm | |
| Minimum Travel Distance (Resolution) | - | |
| Pulse (Coarse) Mode | 150 nm or less (XYZ axes) | |
| DC (Fine) Mode | 0.5 nm or less (XYZ axes) | |
| Operating Environment | - | |
| Temperature | 4–310 K, baking temperature: 373 K or lower | |
| Pressure | Near atmospheric pressure or 10-2–10-8 Pa | |
| (Due to discharge from piezoelectric elements, this device cannot be used in certain vacuum environment ranges) | ||
| Connection Cable (Output) | Standard control terminal (Dsub-15) 2 m/1 set | |
| * Works in Ultrahigh Vacuum/Low Temperature (job order production) 2 m/1 set | ||
| Body Dimensions (Approx. Includes Protrusion) | H 25 mm × D 50 mm × W 20 mm (without probes) | |
| Body Weight | less than 60 g (without the attachment base) | |
| 2. Controller | ||
| Input Voltage | 100 VAC (50/60 Hz) (the other input voltage is option) | |
| Power Consumption | 60 VA or less | |
| Temperature Range | 5–40°C | |
| Humidity Range | 15 – 60 % | |
| Input/Output | Control terminal (Dsub-15) | |
| Dimensions | W 430 × H 88 × D 350 mm | |
| Weight | less than 8 kg | |
| 3. Accessories | ||
| Standard Control Software CD-ROM | 1 | |
| Connection Cable (USB) | Windows PC - Controller | 1 (3 m) |
| Connection Cables | Controller | 1 (5 m) (connectors are separate) |
| AC Cable | 1 (1.5 m) | |
| 4. Windows Laptop (Optional) | ||
| OS | Windows® 10 or 11 | |
| Interface | USB (this device uses 1 port) | |
| CD-ROM Drive | 1 | |
| Memory | 1GB(32bit),2GB(64bit) or more | |
| HDD | Over 10MB is needed as free space | |
