Ultra high vacuum room temperature SPM with excellent cost performance.

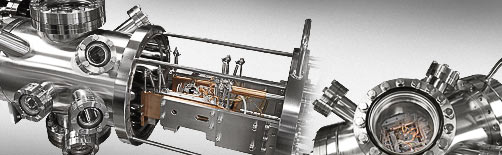

![ST100 RT UHV SPM](/img/UhvRoomTemperatureSTM-1.jpg)
chamber STM Head Observation
chamber
(top view)
This system is applied to wide variety of STM, AFM, SNOM observation at room temperature in Ultra High Vacuum (<10-8 Pa). The compact, simple design and the excellent vibration isolation system easily realize high resolution SPM measurements.
Features
- The most compact and simplest products necessary for SPM under Ultra high vacuum.
- The observation chamber only can be mounted on customer's vacuum systems. (with consultation)
- Metal or organic molecules deposition and light irradiation toward sample surfaces at STM observation position possible (Optional)
Applications
- STM and its applications with atomic resolution under UHV at room temperature
- AFM and its applications under UHV at room temperature (MFM, EFM, KFM, etc.) (Optional)
- SNOM under UHV at room temperature (Optional)
Specifications
SPM Head | |
---|---|
MAX scan range (X×Y×Z) | 4 × 4 × 0.8 µm |
Resolution | Atomic resolution |
Base Pressure | Obs. Prep. Ch. 1.3×10-8 Pa, LLC 1.3×10-5 Pa |
STM Controller | Nanonis™ SPM control system |
Option | |
AFM Function | Tuning fork NC-AFM |
