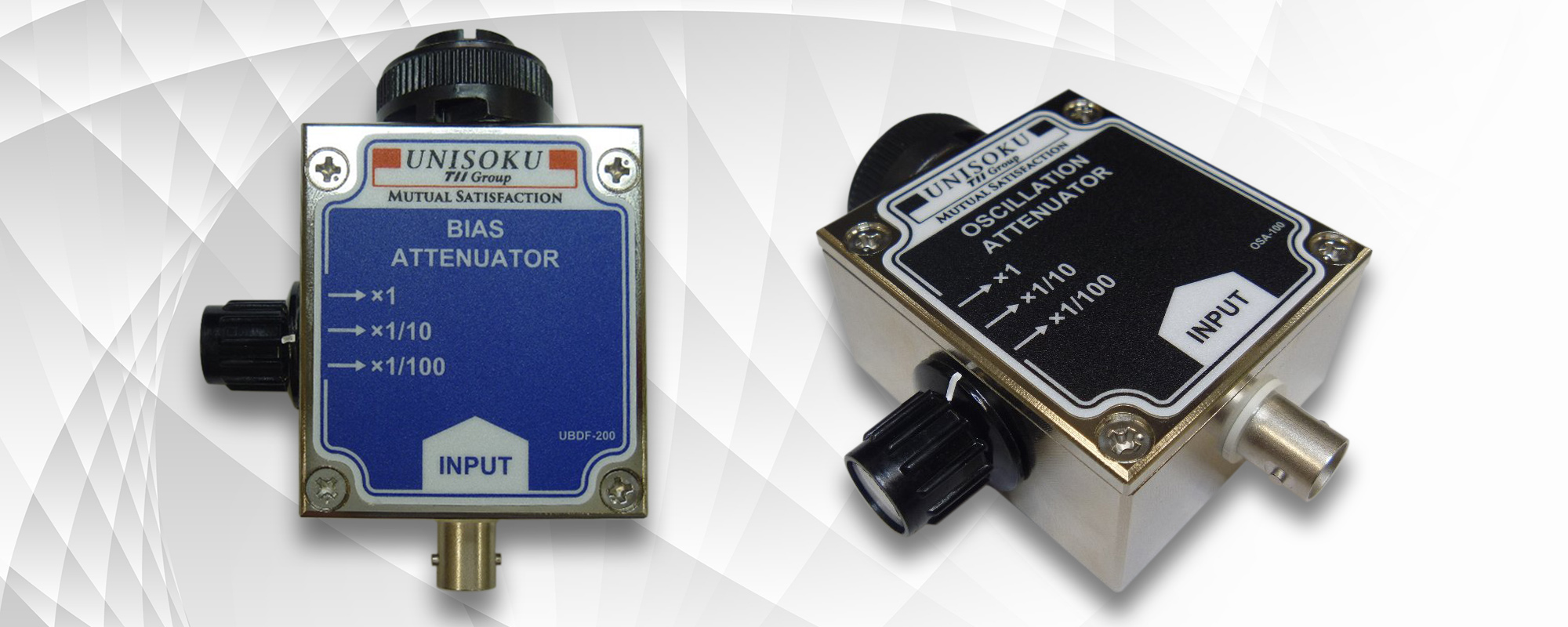

Bias Attenuator UBDF-200, Oscillation Attenuator OSA-100

PDF
Bias Attenuator UBDF-200, Oscillation Attenuator OSA-100

Bias Attenuator UBDF-200

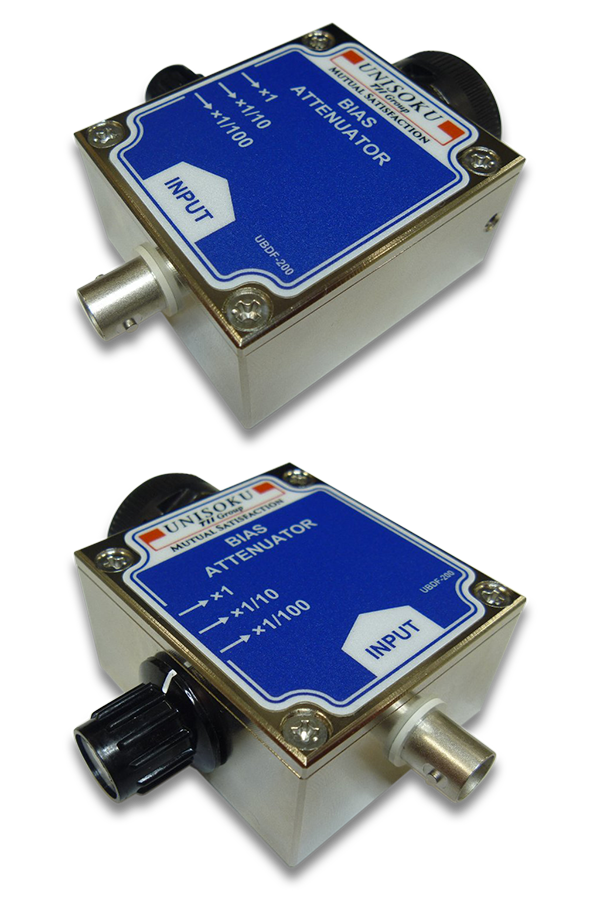

Bias Attenuator UBDF-200

Attenuates and outputs the input bias voltages to 1/1, 1/10, and 1/100.Used for STM and STS measurements in mV order sample bias.High-frequency noise can be attenuated by low-pass filter circuit.


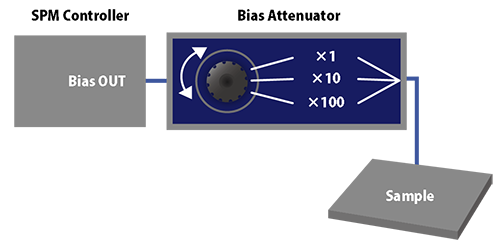

UBDF-200 Bias Attenuator Figure

Specifications

Input
  • BNC receptacle
    		•
    Input Impedance
  • 10kΩ（×1,×1/10,×1/100 same value）
    		•
    Output
  • MS3106 straight plug 6-pin socket
    		•
    Output Pin
  • A, B, C, D, E, F
    		•
    Dimensions
  • H85.7 x W50 x D28.6 (mm)
    		•
    Voltage-Attenuating Precision
  • ± 0.2％
    		•
    Cutoff Frequency:
  • 100 kHz
    		•
    Changes in
    Attenuation Ratio Due
    to Temperature Change
  • ×1: 2 ppm/°C or lower
  • ×1/10: 5 ppm/°C or lower
  • ×1/100: 10 ppm/°C or lower
    		•

    Oscillation Attenuator OSA-100

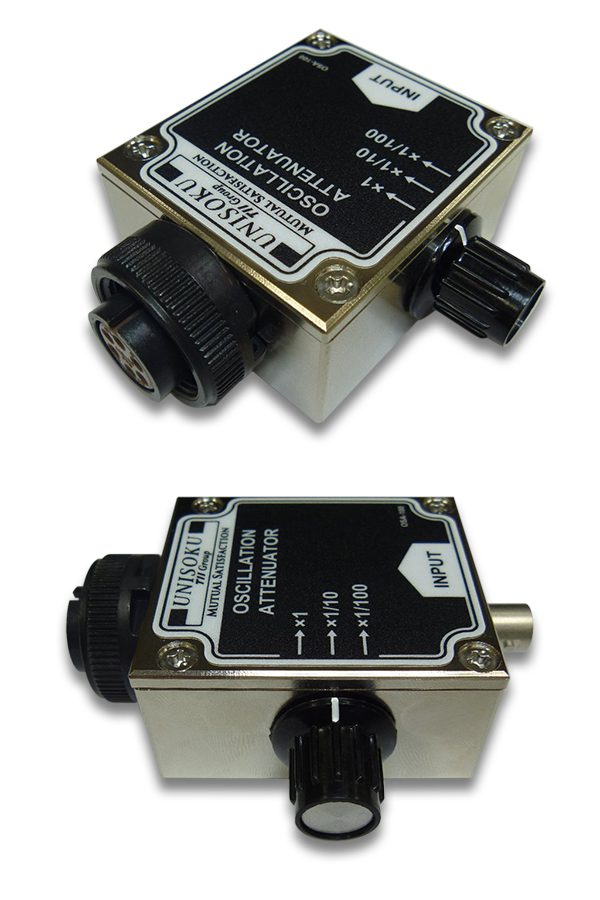

    Oscillation Attenuator OSA-100

    Attenuates and outputs the input bias voltages to 1/1, 1/10, and 1/100. Used for AFM measurements in mV order sample bias. High-frequency noise can be attenuated by low-pass filter circuit.

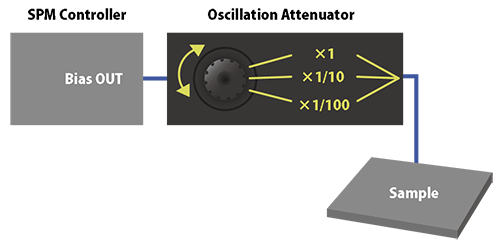

    Oscillation Attenuator OSA-100 Figure

    Specifications

    Input
  • BNC receptacle
    		•
    Input Impedance
  • 20kΩ（×1,×1/10,×1/100 same value）
    		•
    Output
  • MS3106 straight plug 6-pin socket
    		•
    Output Pin
  • A (B: GND, C~F: NC)
    		•
    Dimensions
  • H 85.7 x W 50 x D 28.6 (mm)
    		•
    Voltage-Attenuating Precision
  • ± 0.5％
    		•
    Cutoff Frequency:
  • 300 kHz
    		•
