Electron-beam Heater for STM tip EBT-100
PDF
Published Papers
Head
EBT-100 power supply
Remote controller
(EBR-100)
PDF SPM System Table
Tip cleaning by electron beam heating in UHV conditions
Head
EBT-100 power supply
Remote controller(EBR-100)

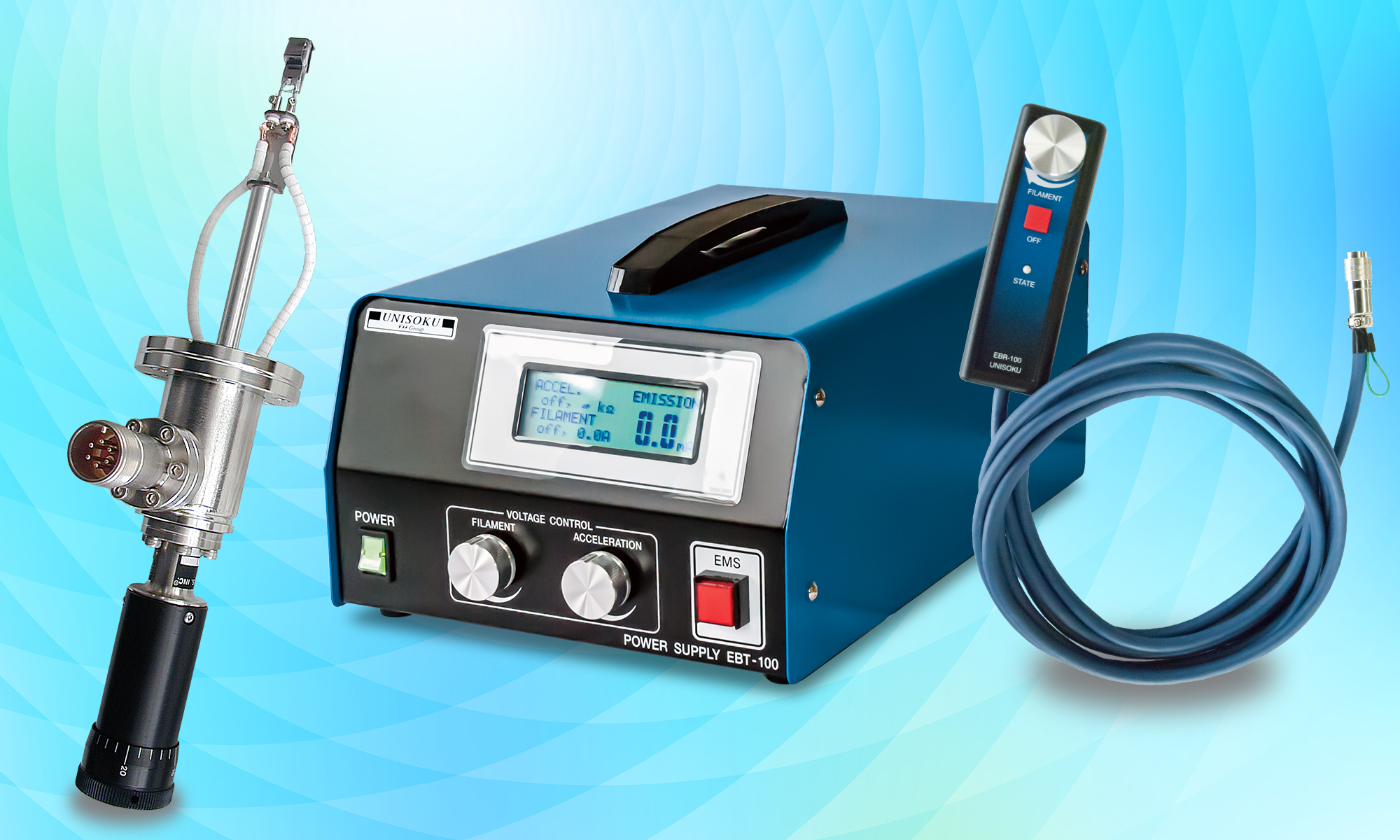

Compact electron beam gun and power supply for STM tip cleaning in UHV. Thermal electrons from a tungsten filament are focused on the STM tip. Tip filament distance is able to adjust by linear motion feedthrough.
Features
- Easy operation, light weight, compact
- Intensive heating of probe tip in ultra high vacuum
- Dramatic effect on data improvement in Ultra-high vacuum STM measurement
Applications
- The tip of the electron beam STM probe is heated and cleaned In ultra high vacuum
Component
| Electron Beam Gun | 1 |
|---|---|
| Power Supply | 1 |
| Remote control（EBR-100） | 1 |
| Cable | 1 |
| Exchange Filament (U200-1030) | 1 |
| Manual | 1 |
Specifications
| Electron Beam Gun | |
|---|---|
| Filament | Tungsten |
| Vacuum Requirement | 1 × 10 - 8 Torr |
| Mounting Flange | ø70 ICF |
| Overall length (minimum) | 337.8mm（Changeable） |
| Liner Motion Stroke | 46mm（Adjustable） |
| Weight | ＜3kg |
| Power Supply | |
| Filament voltage | Max. 12V (variable) |
| Filament current | Max. 3.0A (variable) |
| Acceleration voltage | 0 ～ -1.5 kV (variable) |
| Emission current | Max. 5.9 ｍA (variable) |
| Weight | ＜5Kg |
