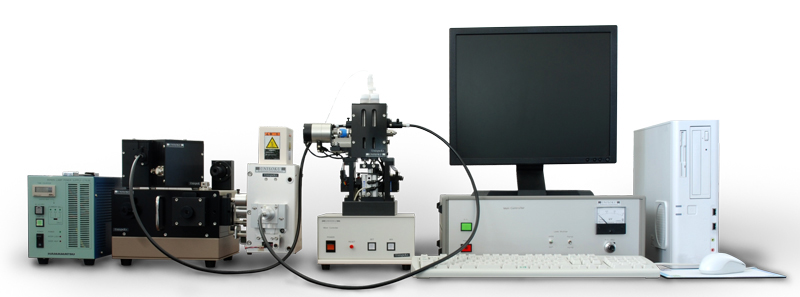

Rapid-Scan Stopped-Flow Spectroscopy System RSP-2000
PDF Published Papers
RSP-2000 is a state-of-the-art stopped flow system which has over 35 year wealth of experience on the market. It is capable of fast multichannel detection, measures up to 8000 absorption spectra under the reaction at the shortest of 1 millisecond intervals.
Monochromatic detection by photomultiplier is provided as standard. The standard configurations are: Light source, Stopped-Flow Mixer with an Automatic Cock, Spectrometer Data processor, Mutichannel detector, Photomultiplier and Optical Guides. High-performance software helps you to acquire the best data by the easiest operation and calculate the reaction velocity on the same display. Fluorescence measurements and Flow Flash measurements with laser are available on request.
System Components
- Light Source
- Stopped-Flow mixer with an automatic cock
- Multi-channel detector
- Monochromatic detector
- System Controller
- Optical Guides
- Data Processor
| Light Source | |
|---|---|
| Lamp | 150 W Xe arc lamp |
| Lamp Housing | Air-cooling, Shutter, Iris, Optical filter holder |
| Stopped-flow Mixer with an Automatic Cock | |
| Mixing Dead Time | 3 msec or less (10 mm cell), 0.9 msec (10 mm microcell) |
| Mixer | Double 2 JET |
| Mode | Piston-drive, Front-stop |
| Cells | 10 mm cell for absorption measurement. 2 mm cell for fluorescence measurement (option) |
| Mixing Ratio | 1:1 (up to 1:9 available by option) |
| Sample Amount | 75μL ~ 250 μL/shot |
| Temperature Range | 5°C ~ 60°C |
| Multi-Channel Detection | |
| Spectrometer | Polychromator PK120 |
| Dispersion Element | Aberration-corrected Concave Grating |
| Brightness | F/2.9 |
| Linear Dispersion | 22 nm/mm |
| Slit Width | 0.05 mm, 0.1 mm, 0.2 mm |
| Second Diffraction Cut-off | Dedicated filter is incorporated |
| Detector | Photodiode array 512ch |
| Maximum Scan Speed | 1 msec ~ 10 sec/scan |
| Number of Scan | Up to 8000 |
| Spectral Width | 560 nm* Specify central wavelength at the time of order. |
| Monochromator Detection | |
| Spectrometer | Monochromator MF200 |
| Dispersion Element | Plane Blazed Holographic Grating |
| Brightness | F/3.5 |
| Linear Dispersion | 8.5 nm/mm |
| Slit Width | 0.1 mm, 0.2 mm, 0.5 mm |
| Second Diffraction Cut-off | None |
| Detector | Hamamatsu PMT R2949 |
| Filter Time Constant | 10 μs ~ 600 ms |
| Sampling Time | 10 μs ~ 600 ms |
| Optical Guides | |
| Material | UV-transmittable quartz |
| Length | 1 m |
| Data Processor | |
| OS | Windows 7/XP/2000 |
| Interface | PCI bus |
| Software | Automatic washing, non-linear least square fitting, data storing by text file |
Optional Accessories
- Kit for fluorescence measurement
- Bath circulator
- Double-mixer with an automatic cock
- Low-temperature double-mixer with an automatic cock
- Light source for fluorescence measurement (150W Xe-Hg lamp)
- Microcell Kit
- Reservoir Syringe Kit
