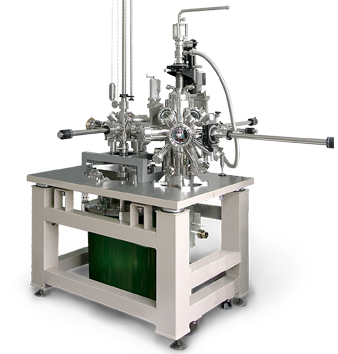

UNISOKU for SPM, STM, AFM, Scanning Probe Microscope, Cryostat for SpectrophotometerUltrahigh Vacuum, Ultra Low Temperature and High Magnetic Field Scanning Probe Microscope USM-1300
UHV-ULT High Magnetic Field SPM USM-1300 Result Gallery (Sample Image Data)
UHV-ULT High Magnetic Field SPM USM-1300 Result Gallery (Sample Image Data)
USM-1300 series makes it possible to observe the sample surface at low temperature in UHV by STM or AFM and analyze surface electronic properties using various methods.
1) Standard system (USM-1300S 4He,USM-1300S 4HeVTI)
The standard system using liquid helium is designed for observation of the sample surface at a very low temperature of 4.2K. We offer this system with Variable Temperature Insert to control the sample temperature in the range of 2K - 50K.
2) Super low temperature system (USM1300S 3He)
The system with 3He cryostat is capable of keeping the sample to observe at ultra-low temperature range from 4.2K to <0.4K.
All the above systems are applied to operation in high magnetic field up to 5, 7, or 11T (depending on the superconductive magnet to use). These systems are also able to combine with other analytical tools mounted on the sample preparation chamber.
This series is still under further development for improvements in performance, operability and stability.
Specification of UHV ULT High Magnetic Fields USM-1300
| Type of STM | USM-1300S 4He | USM-1300S 4HeVTI VTI:Variable Temperature Insert | USM-1300S 3He | |
|---|---|---|---|---|
| ♦Observation Chamber | ||||
| Storage Chamber | Stainless Steel 114mmφ(electro polished) | |||
| Base Pressure | ≤1.3×10-8Pa | |||
| Storage (Sample Holders) | 2Holders | |||
| Storage (Probe Tips) | 2Tips | |||
| Insert Chamber and STM Head | ||||
| Vibration Isolation | Coil spring | |||
| Scan Range at RT/4.2K*1 | >2µm/0.6µm | >2µm/0.6µm | >2µm/0.6µm | |
| Z Range*1 | >250nm at RT | >250nm at RT | >250nm at RT | |
| Resolution Z*2 | <0.02nm | <0.02nm | <0.02nm | |
| Resolution X,Y*2 | <0.1nm | <0.1nm | <0.1nm | |
| Coarse Positioning(X) | Option:±0.5mm | Option:±0.5mm | Option:±0.5mm | |
| Cryostat | Custom design type for SPM | |||
| Cooling temperature | <4.2K | 2K-50K(using 4HeVTI) | <0.4K-50K*3 (using lig.3He) | |
| Superconductive Magnet*4 | <7tesla(variable) | <7tesla(variable) | <7tesla(variable) | |
| ♦Load-Lock Chamber | ||||
| Chamber | Stainless Steel 114mmφ (electro polished) | |||
| Base Pressure | ≤1.3×10-5Pa | |||
| Storage(Sample Holders) | 3Holders | |||
| Storage (Probe Tips) | 3Tips | |||
| Spare Ports | ICF70×2 | |||
| ♦Preparation Chamber | ||||
| Chamber | Stainless Steel 203mmφ (electro polished) | |||
| Base Pressure | ≤1.3×10-8Pa | |||
| Storage(Sample Holders) | 2Holders | |||
| Storage (Probe Tips) | 4Tips | |||
| Sample Heating | Ohmic heating is available on the storage | |||
| Spare Ports | ICF70×4, ICF114×1, ICF203×1 | |||
| ♦Vacuum System | ||||
| Gate valve ICF114 | between Observation Chamber and Preparation Chamber | |||
| between Preparation Chamber and Load-Lock Chamber | ||||
| Angle valve ICF114 | between Load-Lock Chamber and Turbo Molecular pump | |||
| for Observation Chamber | ||||
| Pressure gauge | Nude ion gauge | |||
| Vacuum pump | 400lit./sec Ion-Sublimation combination pump | |||
| for Preparation Chamber | ||||
| Pressure gauge | Nude ion gauge | |||
| Vacuum pump | 1600lit./sec Ion-Sublimation combination pump | |||
| for Load-Lock Chamber | ||||
| Pressure gauge | Nude ion gauge | |||
| Vacuum pump | 70lit./sec Turbo Molecular pump with Rotary pump | |||
| ♦Vibration Isolation Table | Gimbal piston type air damper vibration isolation table | |||
*2 The value in case of use Unisurface α or SPM1000 (RHK Make)
*3 In case of use the sample holder for the direct (resistive) heating, Cooling Temperature is <0.6K.
*4 Other Magnetic field is option
SPM Controller and Data Acquisition System
option (UNISOKU SPM Controller or RHK SPM1000 Controller can operate this system)
This specification is base on 3 Chamber composition.
In case of 2 Chamber composition, it's specification is excepted blue background parts.
| Basic Component | Observation Chamber |
|---|---|
| Load-Lock Chamber | |
| Preparation Chamber | |
| Vacuum System | |
| Vibration Isolation Table | |
| Standard Accessories | |
| SPM Controller (SPM controller you need to buy) |
