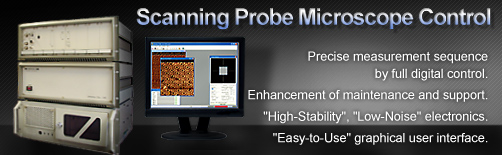

Scanning Probe Microscope Control SystemUnisurface α
Feature
| Precise measurement sequence by full digital control. |
|---|
| Enhancement of maintenance and support system by modular architecture. |
| Superior "High-Stability" and "Low-Noise" electronics. |
| "Easy-to-Use" graphical user interface. |
Specification of Scanning Probe Microscope Control System Unisurface α
| Input Channel (Analog) | 4ch (Option : Additional 4ch |
|---|---|
| Feedback | Digital I control |
| Feedback bandwidth | 10 kHz |
| Feedback function | Linear, log, fifth polynomial system |
| Z direction resolution (Input / Output) | 16 bit / 16 bit |
| Current minimum detection | 0.8pA |
| Approach circuit control method | Inertial drive method(Option:Stepping motor method) |
| Manual retract | Possible |
| Maximum pixels | 1024 × 1024 |
| Rotation of scan size | 360° |
| Real-time image display | 10 images |
| Spectroscopy | I-V, I-Z, etc |
| Measurement Point | Specified point, Line, Grid |
| Other function | Multiple bias, CITS, Lithography, FFT-Power Spec. |
| Preamp (optional) | 10 7 Multiple Amplifier |
| 10 8 Multiple Amplifier | |
| 10 9 Multiple Amplifier |
| Basic Component | SPM Controller (Includes built-in 5 Standard Modules) |
|---|---|
| Power | |
| CPU | |
| Display (TFT 17 inch liquid crystal screen) |
